Frsky S6R 6ch Receiver
USA Warehouse
Stock
10  US$26.99   US$35.99
Intemational Warehouse
Stock
10+   US$26.99   US$35.99
Customers from USA or Canada, please choose USA Warehouse to benefit faster service and lower shipping cost. For other customers, please choose International Warehouse.

Specifications

Model Name:S6R(6ch receiver with built-in 3-axis gyro and 3-axis acceleration)

Dimension:47.42*23.84*14.7(L*W*H)

Weight:12.1g

Number of Channel:6CH(1-6CH from conventional channel outputs)

With RSSI output on board:PWM voltage output(0~3.3V),100HZ,1500±500uS

Operating Voltage Range:4.0-10V

Operation Current:100mA@5V

Operating  Range:full range

Gyro Measurement Range:±2000dps

Accelerometer Measurement Range:±4g

Firn Upgradeable

Compatibility:

Frsky DFT/DJT/DHT in D8_mode

Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D8 mode

Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode

S6R-EU only works with Frsky Taranis X9D Plus-EU/X9E-EU/Horus X12S-EU/XJT-EU in D16-EU mode


Features

  • Built-in a three-axis gyro and three-axis accelerometer sensor module
  • With RSSI PWM output (0~3.3V) on board
  • Built-in battery voltage sensor

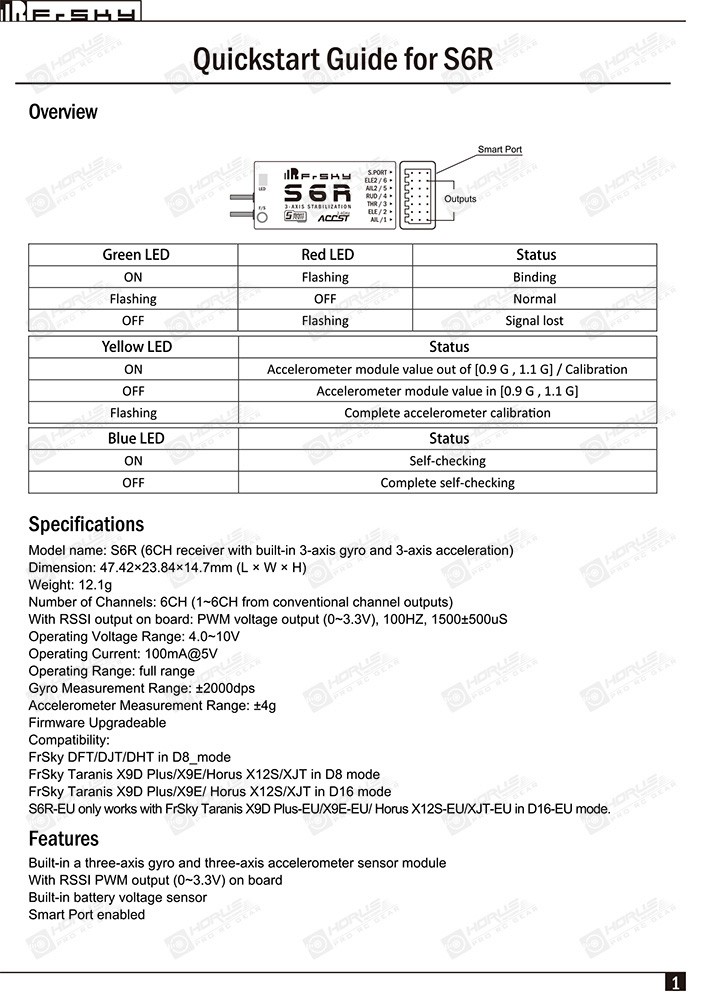

Quickstart_Guide_for_S6R-page1


Quickstart_Guide_for_S6R-page2

Quickstart_Guide_for_S6R-page4
